Type: Other Type
Brand Name: KONLON
Bore Size: 20 mm
Outside Diameter: 40 mm
Model Number: CSK20 , CSK20PP , CSK20P
Precision Rating: ABEC-1
Seals Type: Sealed
Place of Origin: Anhui, China (Mainland)
Material: bearing steel chrome steel GCr15
Application: Auto,Motorcycle,Motor,Pump,Fan Air conditioner,
Lubricated: grease or oil
one way cluth ball beairng freewheel bearing CSK series ,CKB series
1. Specifications:
1) Bearing type: CKA1542 ;CSK30P ;CSK8 ;CSK10; CSK12 ;CSK40 ;DC5476A...
2) Bore diameter range: 4mm to 100mm
3) Shield/closure: 2RS, ZZ, OPEN
4) Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7
5) Vibration level codes: V4, V3, V2, V1
6) Packing: Plastic tube packing or individual box packing.
CSK--2RS (WCB6200-) Series (sealed)
|
Model No
|
Dimensions (mm)
|
Bearing Loads
|
Torque
|
Weight
|
|
d
|
D
|
W
|
C[Kn]
|
Co[Kn]
|
Tkn(N.m)
|
(KG)
|
|
CSK8 2RS
|
8
|
22
|
9
|
3.28
|
0.86
|
2.5
|
0.015
|
|
CSK12 2RS
|
12
|
32
|
14
|
6.1
|
2.77
|
7.5
|
0.05
|
|
CSK15 2RS
|
15
|
35
|
16
|
7.4
|
3.42
|
13.5
|
0.07
|
|
CSK17 2RS
|
17
|
40
|
17
|
7.9
|
3.8
|
24.5
|
0.09
|
|
CSK20 2RS
|
20
|
47
|
19
|
9.4
|
4.46
|
40
|
0.145
|
|
CSK25 2RS
|
25
|
52
|
20
|
10.7
|
5.46
|
68
|
0.175
|
|
WCB6205-2RS
|
25
|
52
|
15
|
14
|
7.85
|
60
|
0.14
|
|
OW6006-2RS
|
30
|
55
|
14
|
13.23
|
8.3
|
120
|
0.14
|
|
CSK30 2RS
|
30
|
62
|
21
|
11.7
|
6.45
|
110
|
0.27
|
|
CSK35 2RS
|
35
|
72
|
22
|
12.6
|
7.28
|
140
|
0.4
|
|
CSK40 2RS
|
40
|
80
|
27
|
15.54
|
12.25
|
260
|
0.6
|

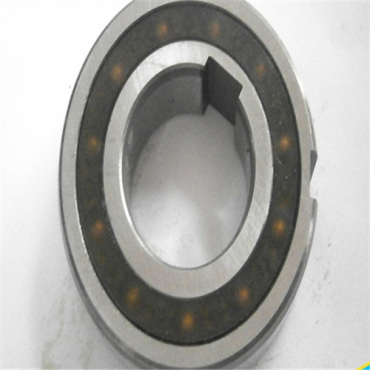

One Way Clutch Bearing / Freewheel bearing CSK20 CSK20PP CSK20P
One Way Clutch Bearing / freewheel bearing CSK20
4 kinds CSK type one way bearings:
The first : without keyway [no PP]
The second: one side with keyway [P]
Third: both inside and outside with keyways [PP]
Fourth, ASNU {TSF} series, the observe side with keyways
